| Power |
| Power Supply Voltage |
100 - 240 V AC ±10%, 50/60 Hz
|
| Operating Temperature |
| Operating Temperature |
Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)
|
| Screen Size (Projected Distance) |
| Standard Size |
Tele: 30” to 300” [1.07 to 10.95 m]
Wide: 30” to 300” [0.89 to 9.12 m]
|
| Brightness |
| White Light Output (Normal/Eco) |
3,800 lm
|
| Colour Light Output |
3,800 lm |
| Contrast Ratio |
| Contrast Ratio |
16,000:1 |

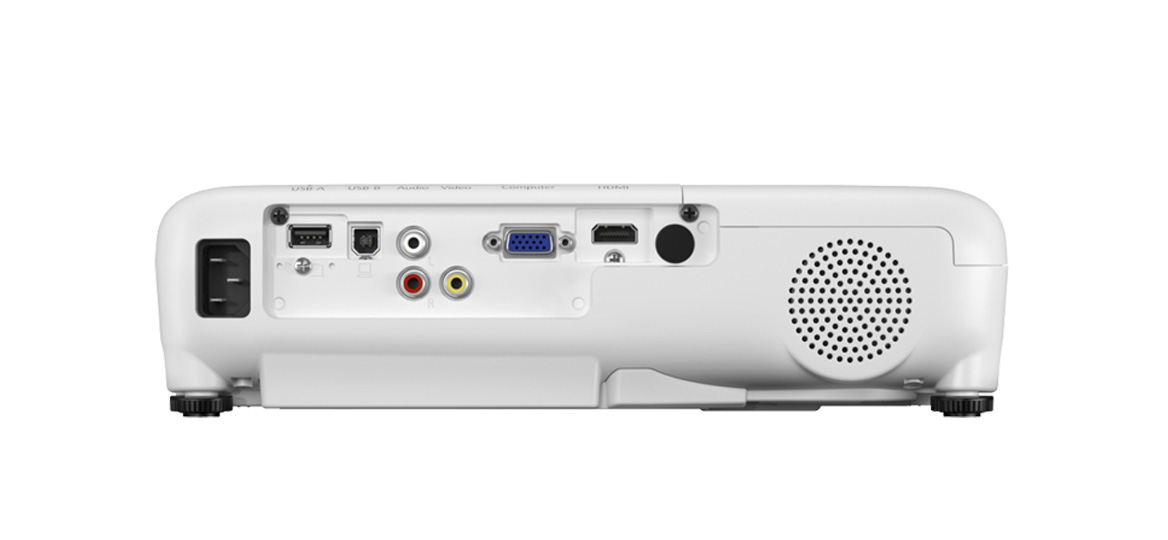

| Connectivity |
| USB Interface |
USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)
|
| Network |
Wireless: Optional (ELPAP11) |
| Analog Input |
Composite: 1 RCA
D-Sub 15pin: 1
|
| Digital Input |
HDMI: 1 (MHL not supported)
|
| Audio Input |
2 RCA: 1 |
| Operating Altitude |
| Operating Altitude |
0 – 3,048 m <0 – 10,000 ft> |
| Start-Up Period |
| Start-Up Period |
Up to 6 seconds, Warm-up Period: 30 seconds |
| Cool Down Period |
| Cool Down Period |
Instant Off |
| Air Filter |
| Type |
High Efficiency Filter
|
| Maintenance Cycle |
6,000 / 12,000 hours*3 |
| Dimension Excluding Feet |
| Dimension Excluding Feet (W x H x D) |
302 x 77 x 234 mm |
| Geometric Correction |
| Vertical/Horizontal Keystone |
±30° / ±30° (Auto Vertical Keystone only) |
| Quick Corner |
Yes |
| Direct Power On/Off |
| Direct Power On/Off |
Yes |
| Projection Technology |
| Projection Technology |
RGB liquid crystal shutter projection system (3LCD) |
| Fan Noise |
| Fan Noise (Normal / Eco) |
37dB / 28dB |
| Specifications of Main Parts |
| LCD |
Native Resolution: XGA (1024 x 768)
Size: 0.55” (C2fine)
|
| Lightsource |
Type: 210W UHE
Life (Normal / Eco): 6,000 / 12,000 hours
|
| Aspect Ratio |
4:3 |
| Projection Lens |
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.49 – 1.72
Focal Length: 16.90 – 20.28 mm
Zoom Ratio: 1 – 1.2
Throw Ratio: 1.48 – 1.77 (Wide to Tele) |
| Optional Wireless Specifications |
| Supported Speed for Each Mode |
IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 72.2 Mbps*2
IEEE 802.11a (5GHz): 54Mbps*2
IEEE 802.11n (5GHz): 150 Mbps*2
|
| Wireless LAN Security |
Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES) |
| Weight |
| Weight |
Approx. 2.5 kg |
| Projectors Facets |
| Resolution, Projectors Facets |
XGA |
| Contrast Ratio, Projectors Facets |
16,000:1
|
| Brightness Range Lumens, Projectors Facets |
2000 |
| Features, Projectors Facets |
Wifi
Quick Corner
|
| Laser / Lamp, Projectors Facets |
Lamp |
