| HARDWARE FEATURES | |
| Interface | USB 2.0 |

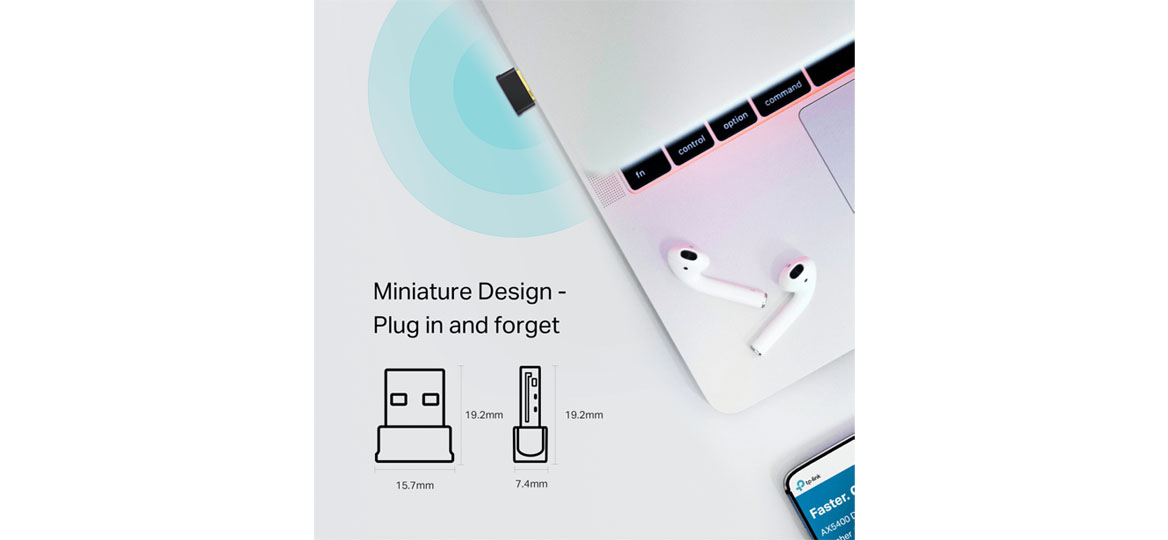

| Dimensions ( W x D x H ) | 15.7*7.4*19.2mm |
| Antenna | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 5GHz
2.4GHz |
| Signal Rate | 5GHz
11ac: Up to 433Mbps(dynamic) 11n: Up to 150Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 200Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 5GHz：
11a 6Mbps: -90dBm 11a 54Mbps: -73dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -67dBm 11ac VHT80 MCS0: -82dBm 11ac VHT80 MCS9: -56dBm 2.4GHz: 11b 1Mbps: -96dBm 11b 11Mbps: -88dBm 11g 6Mbps: -89dBm 11g 54Mbps: -74dBm 11n HT20 MCS0: -89dBm 11n HT20 MCS7: -72dBm 11n HT40 MCS0: -86dBm 11n HT40 MCS7: -66dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3 encryption standards |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |

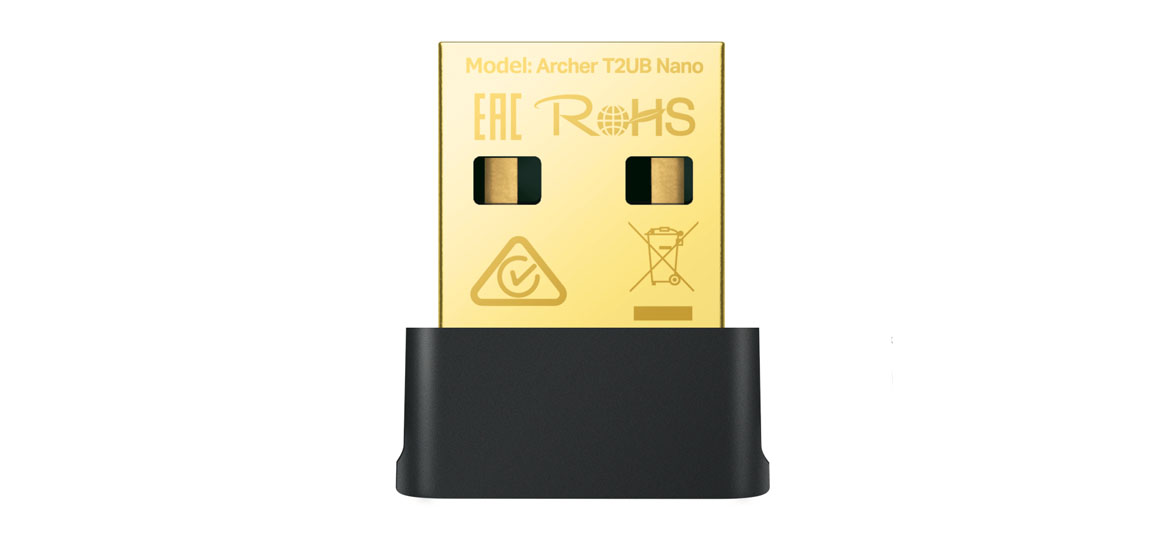

| Package Content | AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T2UB Nano
Resource CD Quick Installation Guide |
| System Requirements | WiFi: Win 11/10/8.1/8/7
Bluetooth: Win 11/10/8.1/7 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
